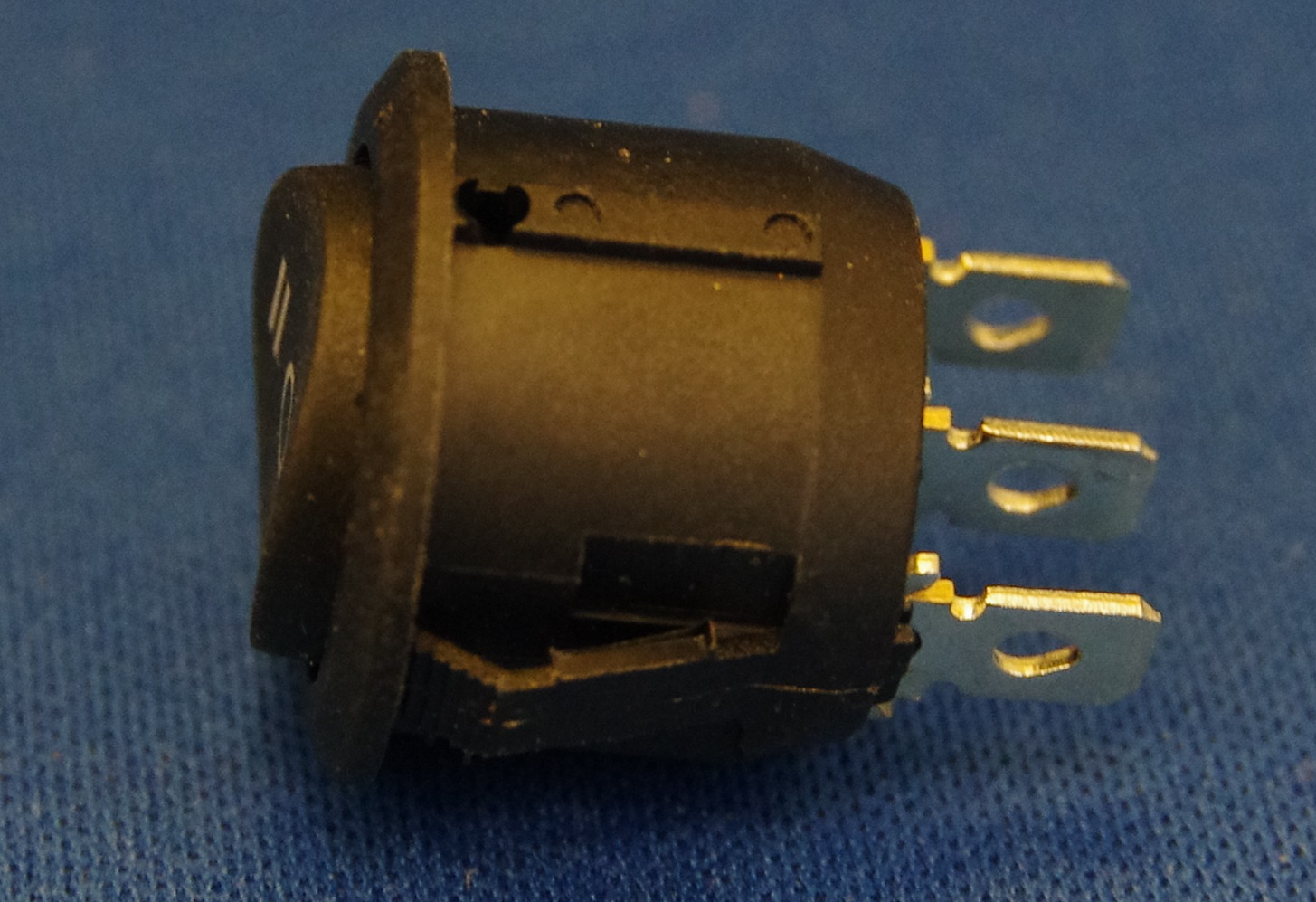

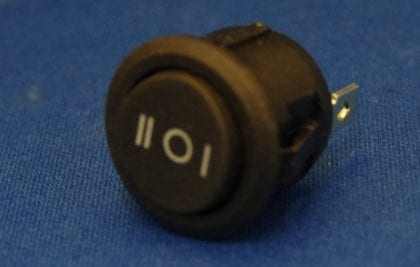

ON-OFF-ON 3 Pins Round Rocker Switch SPST 6A

£1.99

100 in stock

SKU: KCD1-105 Categories: , Tags: ,

Description

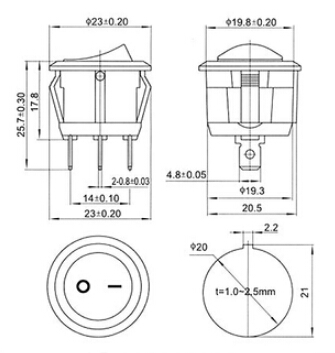

The model number of these ON-OFF-ON 3 pins switches is KCD1-105,  they are round rocker power switch with voltage/current of 250V/6A. It is SPST (Single Pole Single Throw).  The mounting hole is about 20mm.

Specification:

Contact Type:                     3 pins ON-OFF-ON SPST

Voltage/Current:                 AC 250V 6A /AC 125V 10A

Button Colour:              Black

Dielectric intensity:        1500V AC/Min

Contact resistance:        50

Insulation Resistance:     100

life:           10,000 cycles








Additional information

Weight 0.03 kg
Dimensions 0.00000000 x 0.00000000 x 0.00000000 mm
