Induction heater developer kit for CRO-SM3
A flexible development kit for building and evaluating custom induction heating systems using the CRO-SM3-PRO. Includes the controller, configurable tank capacitor kit, chokes, coil wire, breakout board and USB-to-serial adaptor for prototyping, computer-based control and monitoring.
$298.06
1 in stock
Description
The CRO-SM3-PRO-DEV developer kit brings together the CRO-SM3-PRO induction heating controller and supporting components to help engineers build working prototypes and evaluate induction heating for their applications.

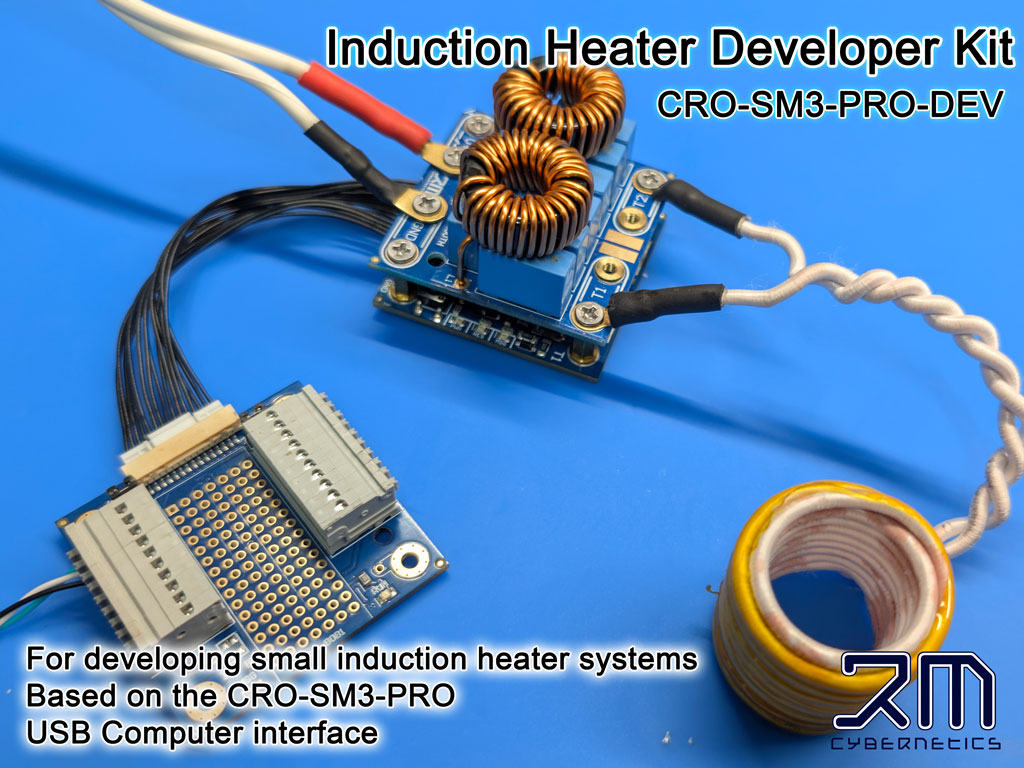

Experiment with different coil shapes, capacitor values and workpieces to explore heating performance before integrating the controller into your own equipment. The supplied components allow a range of configurations, with assembly guidance and an initial test procedure provided in the kit datasheet.
Adapt the coil and tank circuit
The tank capacitor kit provides selectable capacitance from 330 nF to 2,640 nF in 330 nF increments. The supplied 1.5 m length of terminated litz wire can be wound into a work coil to suit your workpiece. Together, these allow you to explore how coil geometry and capacitance affect resonant frequency and heating behaviour.
Configure, control and monitor
Connect the supplied USB-to-serial adaptor to use the CRO-SM3-PRO browser-based application for configuration, operating controls and live monitoring. Observe changes in current and resonant frequency as you introduce a workpiece or adjust your setup.
The EXP-BOB1 breakout board provides convenient terminal connections for serial communication, external controls and integration with your own electronics.

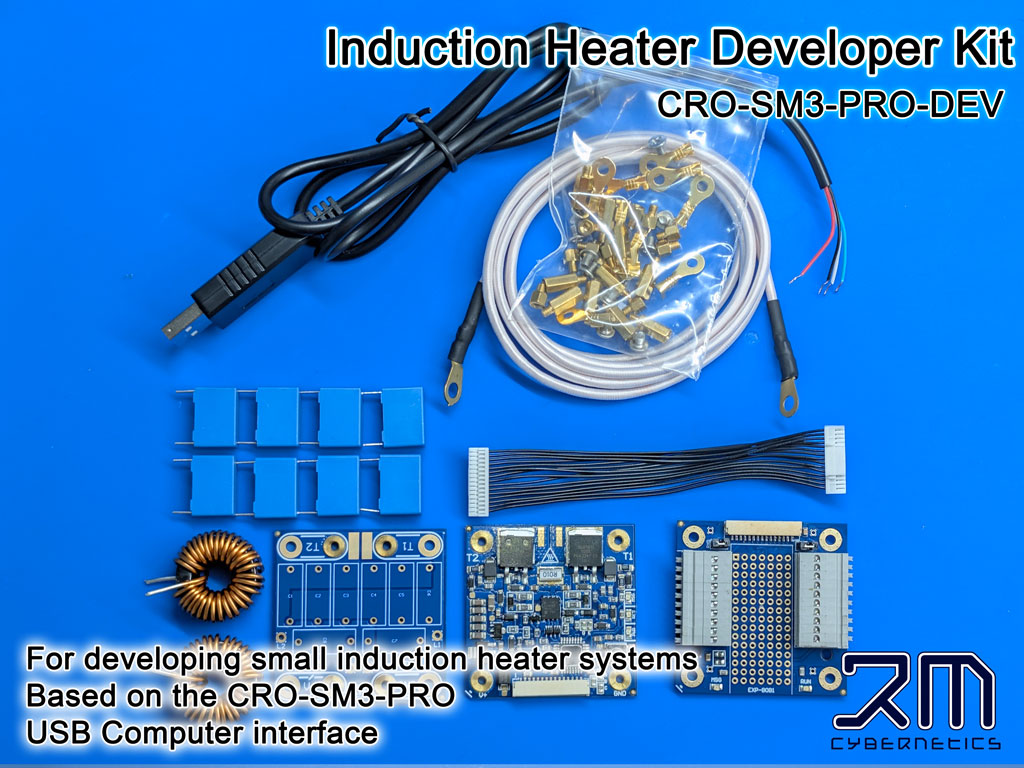

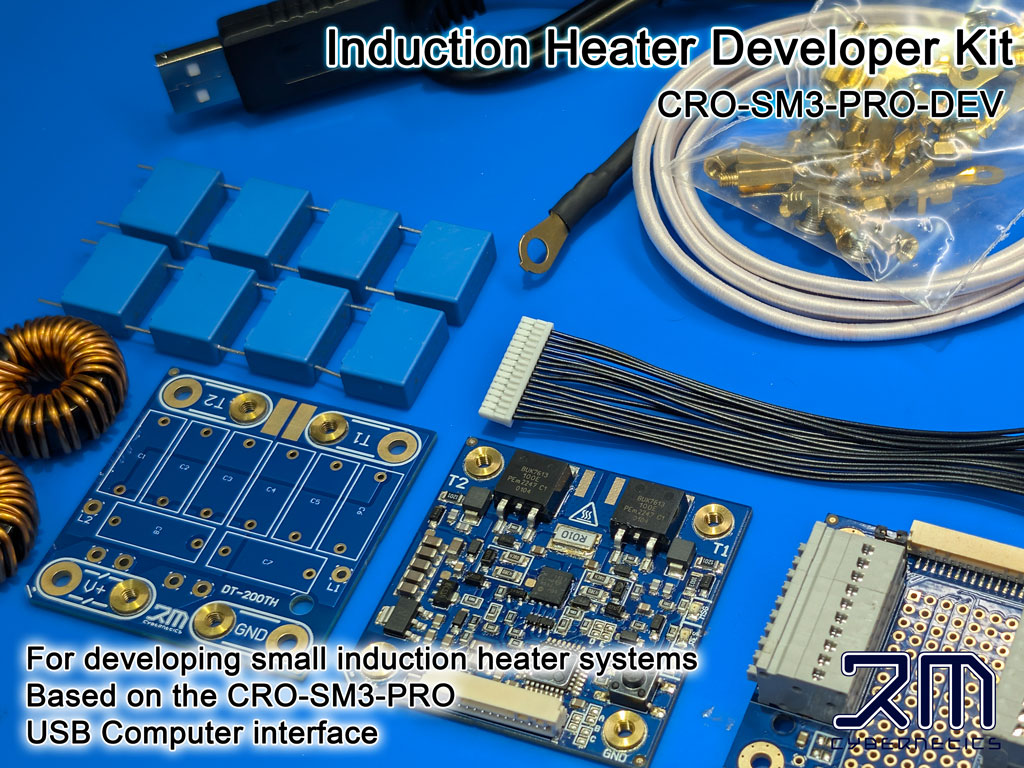

Kit contents
-
CRO-SM3-PRO induction heating controller
-
DT-200-TH-KIT tank capacitor kit
-
EXP-BOB1 connector breakout board
-
10 cm, 15-way JST cable
-
NMMK-M3 mounting hardware
-
Two 100 µH, 15 A chokes
-
USB-to-UART serial TTL adaptor
-
1.5 m of terminated 18 A litz wire
Assembly and requirements
Assembly and soldering are required. A suitable external DC power supply is required and is not included. Cooling must be selected to suit the operating conditions; a heatsink is not included.
Access to the CRO-SM3-PRO web application is provided through the registered RMCybernetics account used to purchase the kit. Read the kit and component datasheets before assembly and operation.
| Weight | 0.300 kg |
|---|---|
| Dimensions | 50 × 100 × 50 mm |
